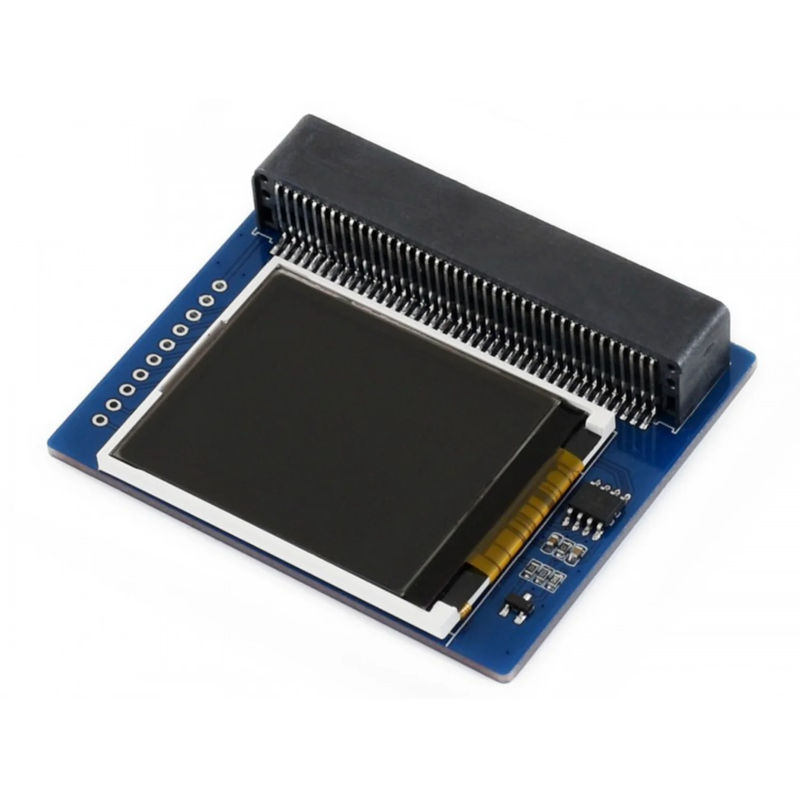

1.8inch colourful display module for micro:bit, 160×128

This is a colorful display module designed for the BBC micro:bit, 1.8inch diagonal, 160×128 pixels, capable of displaying 65K colors.Tired of the 5×5 LED matrix? Time to get a tiny monitor for your micro:bit, this one would be the ideal choice.Featuresmicro:bit edge connector, directly pluggableEmbedded driver ST7735S, supports 65K colorsOnboard SRAM 23LC1024, used as display cache, no more out of memorySPI interface, takes up only a few IO pinsBacklight adjustment via PWMReserved solder pads for control interface, make it easy to connect with Arduino/Nucleo boardsComes with development resources (micro:bit graphical demo/user manual, etc.)SpecificationsDriver: ST7735SResolution: 160×128Display color: RGB, 65K colorsOperating voltage: 3.3VDimension: 61mm x 51.5mmPinoutsPINMICRO:BIT PINDESCRIPTION 3V3 | 3V3 | PowerGND | GND | GroundMISO | P14 | SPI data master input/slave outputMOSI | P15 | SPI data master output/slave inputSCK | P13 | SPI clock inputLCD_CS | P16 | LCD chip selectionRAM_CS | P2 | SRAM chip selectionDC | P12 | LCD data/commandRST | P8 | LCD resetBL | P1 | LCD backlightDevelopment ResourcesWiki : www.waveshare.com/wiki/1.8inch_LCD_for_micro:bit
